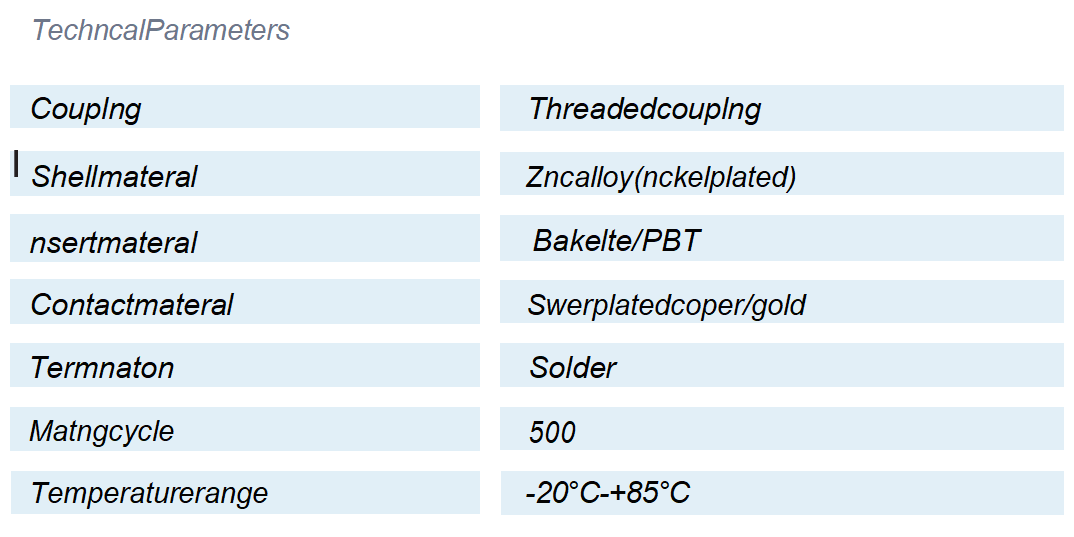

Technical requirements:

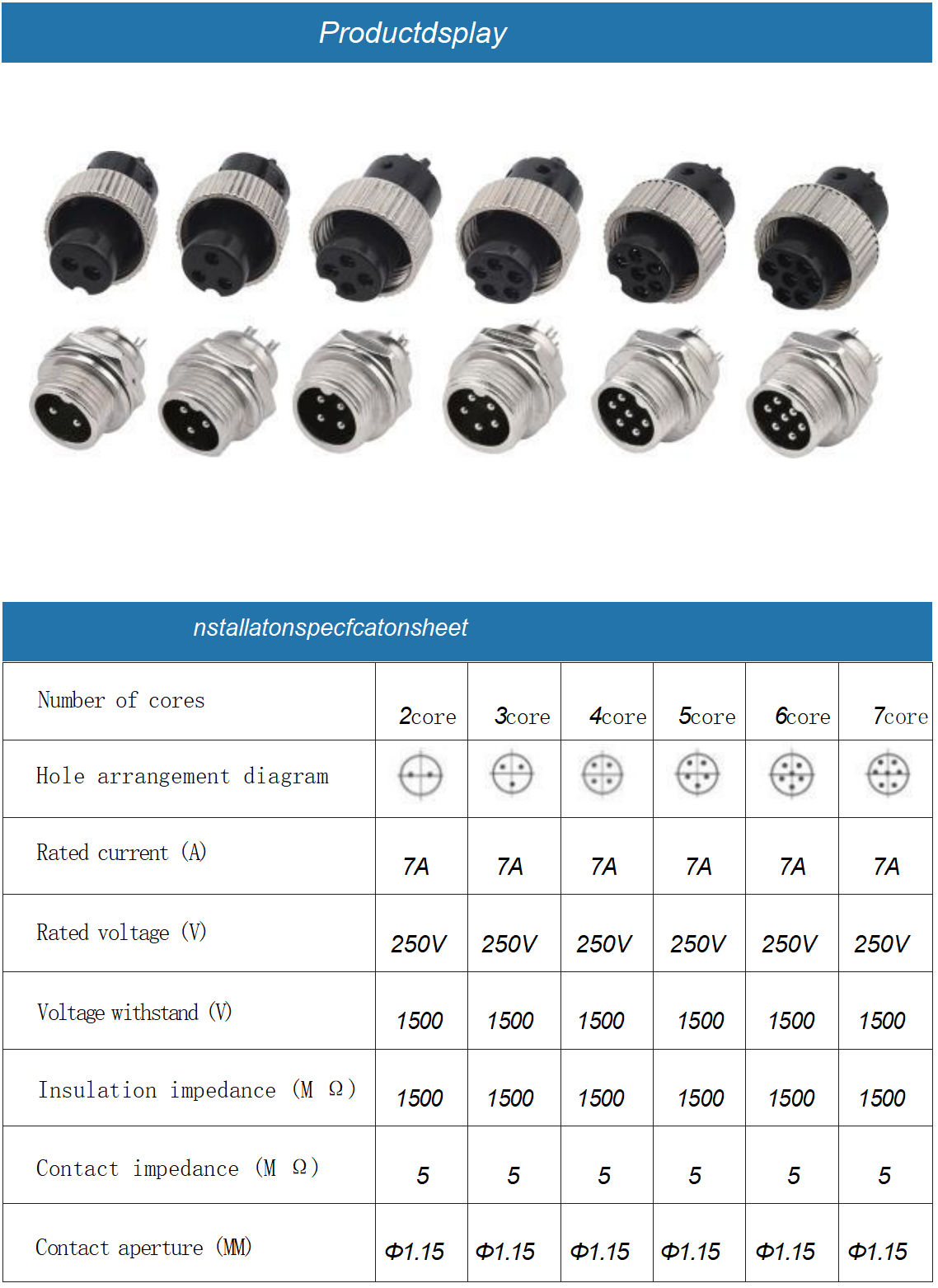

1. Rated current: 7A

2. Contact impedance: ≤ 50M Ω after male and female pair insertion. 3. Insulation resistance: ≥ 100M Ω (500V

After DC testing, ≥ 50M Ω

4. Plastic material/color: (phenolic plastic PF2A4-161J) material/black

5. Contact material: brass C3604

6. Shell material: Zinc alloy

7. Salt spray test: ≥ 24h

8. Insertion and extraction force: Insertion force 0.3-5 (KG)

Pullout force 0.3-5 (KG)

9. Electroplating specifications: Nickel plating on contact parts and nickel plating on shell
